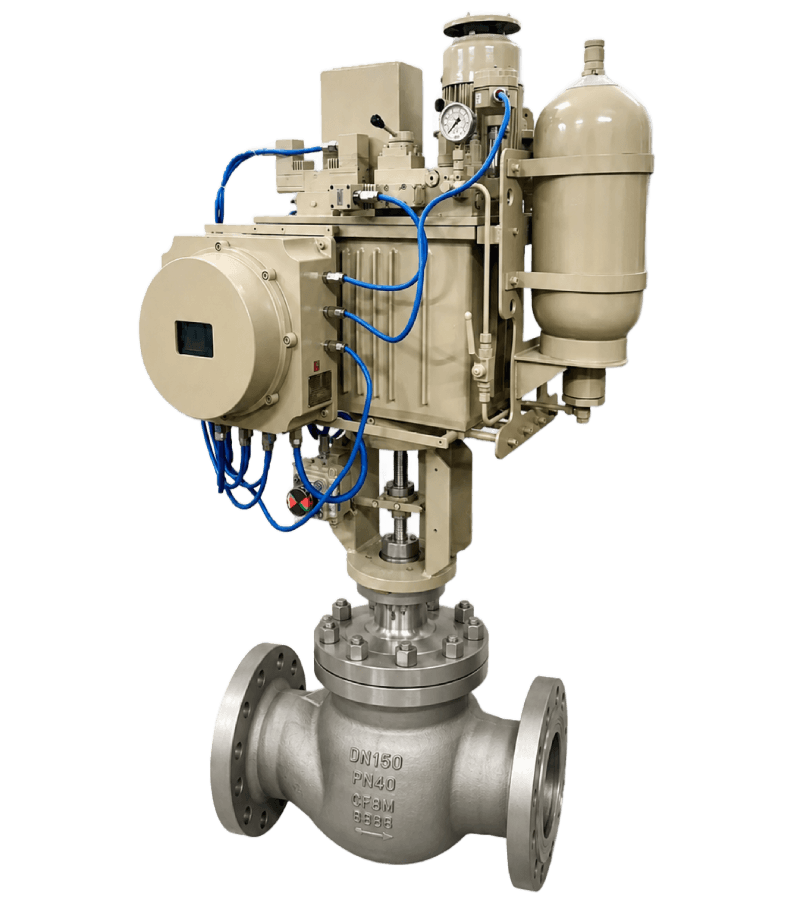

Electro – Hydraulic Linear Actuators
Compact Electro-Hydraulic Linear actuators combine power, control and precision in one system.
Technical Specifications:
| Thrust | : 1.2 – 200KN |
| Stroke | : 20 – 307mm |
| Speed | : 2 – 30Sec |
| Input Signal | : 4 – 20mA |
| Feedback Signal | : 4 – 20mA |
| Fail Safe | : Open / Close / Stay put |
| Duty | : Continuous / Intermittent |
| Sensitivity | : 0.1% of full input signal. |
| Hysteresis | : 0.2% of stroke. |
| Linearity | : 0.1% – 2% of positioning angle |
| Ingress Protection | : IP66 |
| Ex-Classification | : Ex 60079 – 46 IIB T3 Gb (-10°C ≤ Ta ≤ +50°C) |
| Certifications | : Ex, PESO |
Features
- Fit & Forget.
- Maintenance Free.
- No operational spares up to 5 years.
- Self-contained Linear Electro Hydraulic Actuator.
- Mechanical Feedback Mechanism.
- Modulating Control Function.
- Compact Design.
- Degree of Ingress Protection – IP66
- Customizable as per requirement
- Non-Intrusive Type Actuator
- Working Temperature up to 80°C
- Corrosion Protection
- Fail Safe Function
