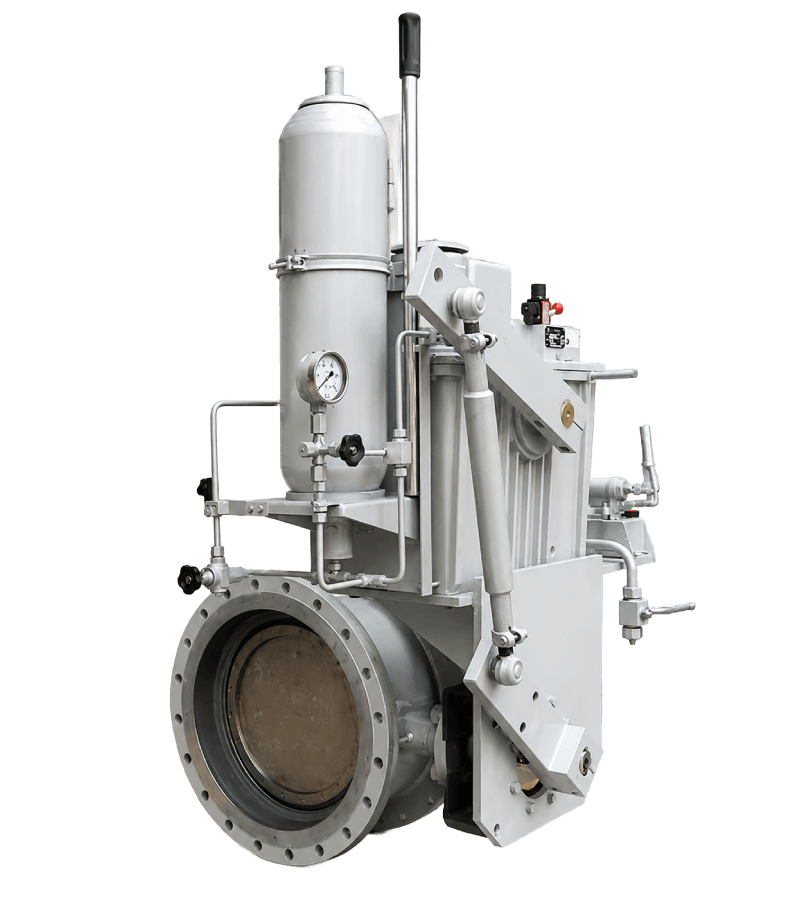

Electro – Hydraulic Rotary Actuators
Compact Electro-Hydraulic Rotary actuators combine power, control and precision in one system.
Technical Specifications:
| Torque | : 40 – 7500Nm |
| Angle | : 70° (Adjustable up to 90°) |
| Speed | : 2 – 30 seconds or higher, as per requirement |
| Input Signal | : 4 – 20mA |
| Feedback Signal | : 4 – 20mA |
| Fail Safe | : Open / Close / Stay put |
| Duty | : Continuous / Intermittent |
| Sensitivity | : 0.1% of full input signal. |
| Hysteresis | : 0.2% of stroke. |
| Linearity | : 0.1% – 2% of positioning angle |
Download Catalog
Features
- Fit & Forget.
- Maintenance Free.
- No operational spares up to 5 years.
- Self contained Rotary Electro Hydraulic Actuator
- Mechanical Feedback Mechanism.
- Modulating Control Function.
- Compact Design.
- Customizable as per requirement
- Non-Intrusive Type Actuator
- Working Temperature up to 80°C
- Corrosion Protection
- Fail Safe Function
